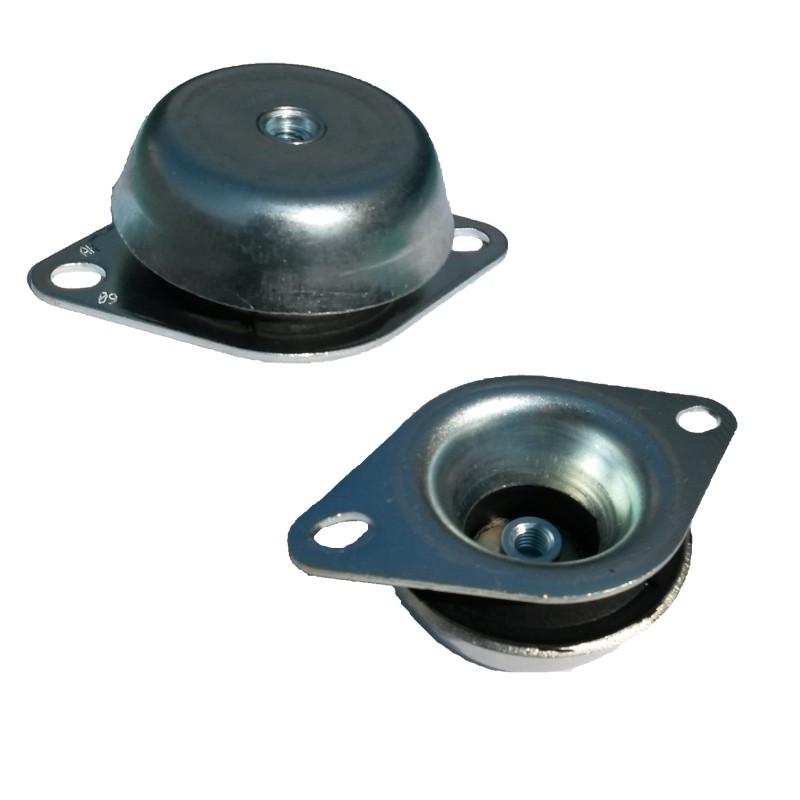

BELL SHAPED ANTI-VIBRATING ARTICLES

Made of rubber which has been vulcanized between two shaped and punched metal plates. Used for the insulation of electric motors, hydraulic pumps, etc..

Technical Data

Description Load kg H K L Ø A Ø B Ø C nut Ø D Ø E Ø F
ANTIVIBRANTI A CAMPANA-045 INT.110 320 45 110 130 92 75,5 16,2 10,2 42 80
ANTIVIBRANTI A CAMPANA-045 INT.110 M.12 320 45 110 130 92 75,5 M12 10,2 42 80
ANTIVIBRANTI A CAMPANA-195 INT.160 620 50 160 190 109 98,5 24,2 16,2 60 108
ANTIVIBRANTI A CAMPANA-217 INT. 85 M.12 220 30 85 100 62 50 M12 8,2 25 55

Application Sectors
