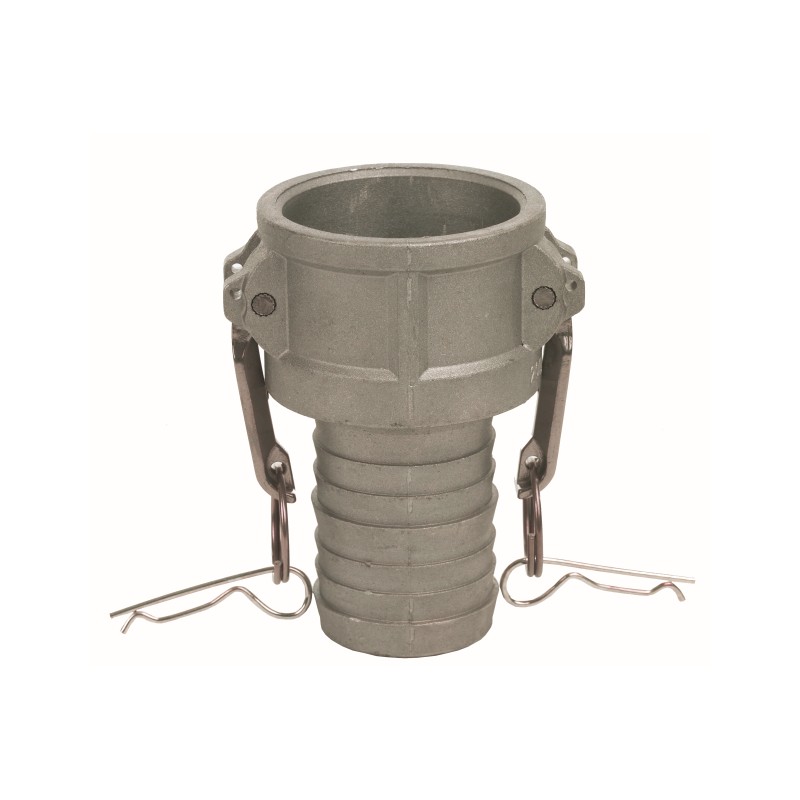

FEMALE HOSETAIL - TYPE "C"

With grooved hose-shank. Available in AL = Aluminum, BR = Brass, SS = AISI 316 S/S, PP = Polypropylene. Oil-resistant standard gaskets = NBR. Specials on request: EPDM (for saline solutions and aldehyde), FKM (for aromatic products, chlorine and sulfur), PTFE (for acids and solvents).

Technical Data

Information request

Technical Data

Description	Fitting I.D. mm	Diam. mm	Nominal size inch	Hosetail size mm	PP Pressure bar	Packaging	Pressione AL-SS bar	Pressione BR bar
RACC.CAM LOCK "C" F/PTG 16 1/2"	24	DN 15	1/2"	13	-	10 NU	10	17
RACC.CAM LOCK "C" F/PTG 20 3/4"	32	DN 20	3/4"	21	8,5	10 NU	10	17
RACC.CAM LOCK "C" F/PTG 25 1"	37	DN 25	1"	27	8,5	10 NU	10	17
RACC.CAM LOCK "C" F/PTG 35 1"1/4	46	DN 32	1.1/4"	34	6,5	10 NU	10	17
RACC.CAM LOCK "C" F/PTG 40 1"1/2	53	DN 40	1.1/2"	40	6,5	10 NU	10	17
RACC.CAM LOCK "C" F/PTG 50 2"	63	DN 50	2"	51	6,5	10 NU	10	17
RACC.CAM LOCK "C" F/PTG 65 2"1/2	76	DN 65	2.1/2"	64	-	10 NU	10	10
RACC.CAM LOCK "C" F/PTG 75 3"	92	DN 80	3"	76	5	10 NU	10	10
RACC.CAM LOCK "C" F/PTG100 4"	120	DN 100	4"	103	5	10 NU	7	10
RACC.CAM LOCK "C" F/PTG125 5"	146	DN 125	5"	128	-	10 NU	5	5
RACC.CAM LOCK "C" F/PTG150 6"	176	DN 150	6"	152	-	10 NU	5	5
