ELETTROPOMPA AUTOADESCANTE PER TRAVASO LIQUIDI
    ELETTROPOMPA AUTOADESCANTE PER TRAVASO LIQUIDI

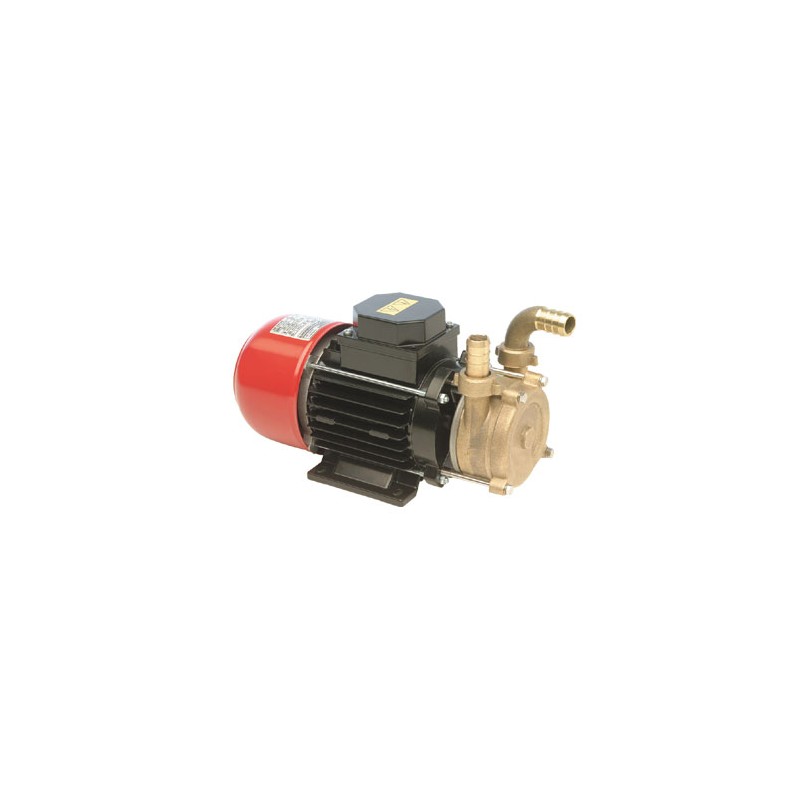

SELF-PRIMING ELECTRIC PUMP FOR LIQUID TRANSFER

A side channel with a DC motor. Equipped with a strong suction capability and can operate with discontinuous presence of liquid intake. The particular tight structure of the pump body prevents the contact between the liquid and the engine part and prevents losses. Can be optionally equipped with various types of seals and manual by-pass for the adjustment of capacity and hydraulic head. It is used in the nautical sector, tank trucks, in agriculture, etc.. FEATURES: 6 meters height of priming, dc motor 12 or 24 volt with terminal block, IP 23 protection, continuous duty, pumps are supplied with one straight fitting and one curved fitting. FLUID SPECIFICATIONS: maximum temperature 90° C (130° C with Viton seals), max density 1,1 g/cm3, without hard particles (eg sand), not too viscous, examples: fresh water, sea water, oil, pesticides, etc. Do not use gasoline, solvents, and, in general, in places with risk of explosion and fire. Pump body: bronze. Impeller: bronze. Shaft: stainless steel AISI 316. Counterflange (ECC 12/20 and ECC 24/20): stainless steel AISI 304. Volt: 12. Hp 0,3. R/min: 2400. Curved hose.

Information request

Technical Data

Description R/min HP Volt
Z-PO-ELETTROP.TELLAR. ECC 12/20 12V 2400 0,3 12

Application Sectors
