MASCHI A MACCHINA A FILETTATURA METRICA ISO
    MASCHI A MACCHINA A FILETTATURA METRICA ISO

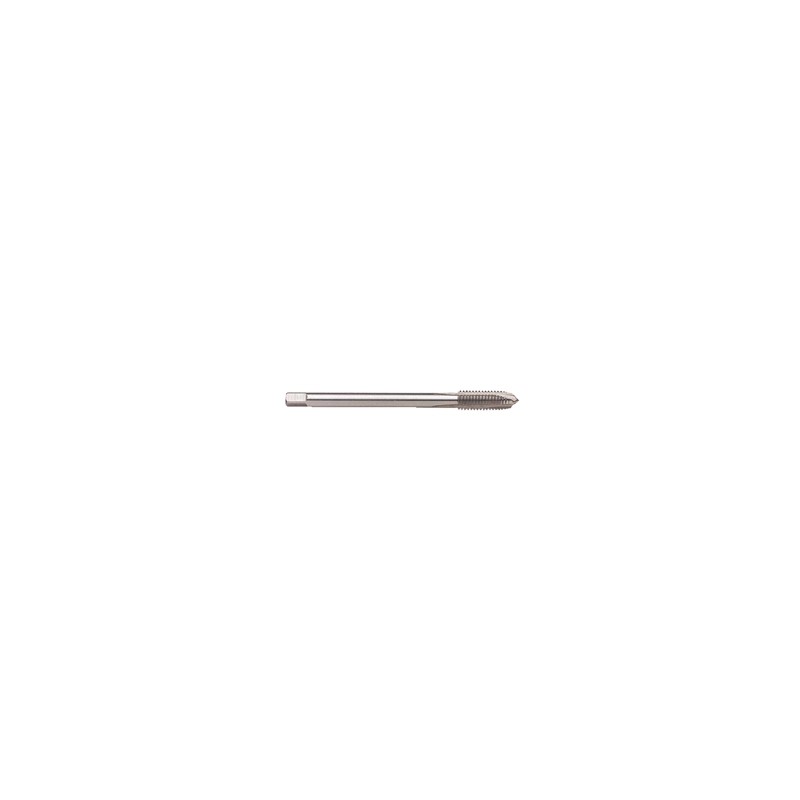

ISO METRIC THREADS MACHINE TAPS

In cobalt HSS. DIN 371/B standards. Reinforced shank. Metric ISO thread - large step - straight flutes, proper opening. For through holes in steel, cast iron and metal materials in general with a tensile strength up to R: 900 N/mm2. It is recommended the use of taps lubricating, where possible, with cutting oil or emulsion. Individual 1 piece packing in plastic.

Information request

Technical Data

Description L thread mm L tot mm Ø per pitch
Z-MASCHI MAC.PASSO G.HPU410 M 3X0,5 11 56 M3 x 0,5
Z-MASCHI MAC.PASSO G.HPU410 M 4X0,7 13 63 M4 x 0,7
Z-MASCHI MAC.PASSO G.HPU410 M 5X0,80 16 70 M5 x 0,8
Z-MASCHI MAC.PASSO G.HPU410 M 6X1 19 80 M6 x 1
Z-MASCHI MAC.PASSO G.HPU410 M 8X1,25 22 90 M8 x 1,25
Z-MASCHI MAC.PASSO G.HPU410 M 10X1,5 24 100 M10 x 1,5
