CHEMISPIR

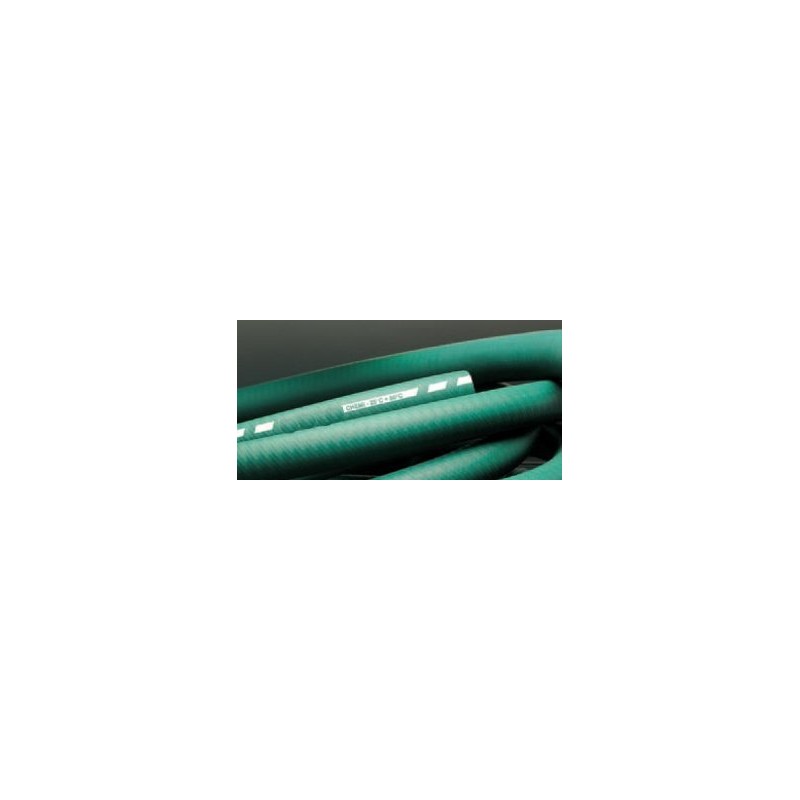

Hose made of thermoplastic rubber with high resistance to kinking, it is very flexible and light, with galvanised steel helix and polyester yarn reinforcement. This hose is suitable for suction and delivery of liquids, where a more resistant hose, with higher specifications than normal is requested, it is used in oil-hydraulic and chemical plants. Good resistance to detergents and to sulphuric acid. Resistant to abrasion according to ISO 4649:mm³ 150. Working temperature: -25°C +80° C.

Technical Data
Information request

Technical Data

Description Suction m/H₂O Weight g/m Working press. bar Bursting press. bar Bending radius mm Packaging
TUBO P CHEMISPIR 30 9 650 10 30 85 60 MT
TUBO P CHEMISPIR 50 9 1280 10 30 130 30 MT
TUBO P CHEMISPIR 60 9 1550 9 27 160 30 MT
TUBO P CHEMISPIR 80 9 2400 8 24 250 30 MT

Application Sectors
