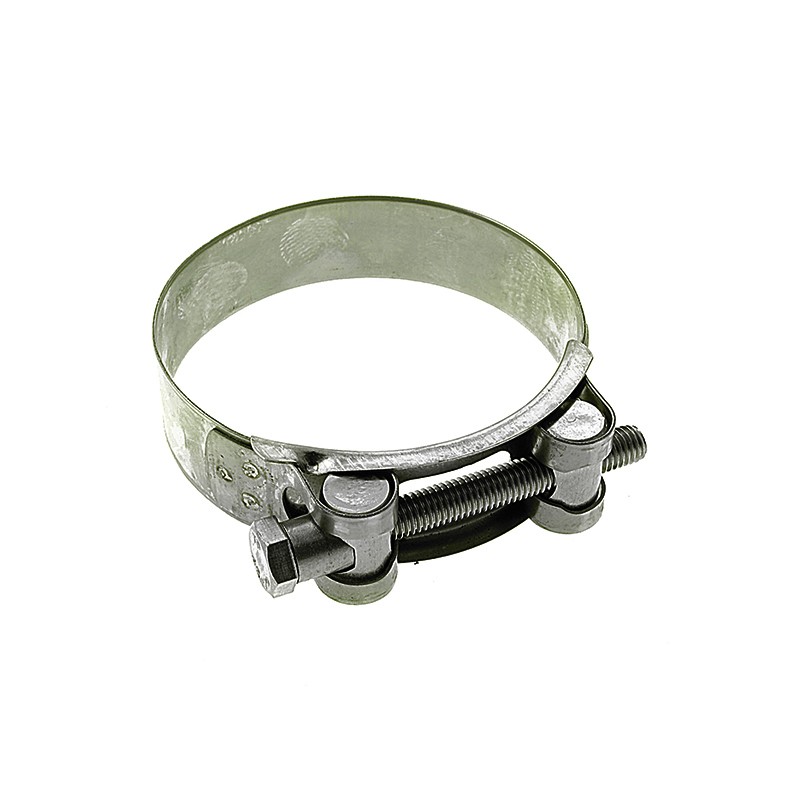

HOSE CLAMPS HEAVY TYPE W2

Stainless steel 430 disedges tape W2, screw 8.8 in zinc plated steel, threaded ferrule in zinc plated steel, three welding points.

Technical Data

Information request

Technical Data

Description	Wrench mm	Tape width mm	Suggested install torque Nm	Torque max Nm	Screw mm	Packaging
FASCETTE PESANTI W2 20-22 SPEC.	8	18	4,5	13	M5 x 40	50 NU
FASCETTE PESANTI W2 23-25 '	8	18	4,5	13	M5 x 40	50 NU
FASCETTE PESANTI W2 26-28	8	18	4,5	13	M5 x 40	50 NU
FASCETTE PESANTI W2 29-31	10	20	9	13	M6 x 50	40 NU
FASCETTE PESANTI W2 32-35	10	20	9	13	M6 x 50	30 NU
FASCETTE PESANTI W2 36-39	10	20	9	13	M6 x 50	30 NU
FASCETTE PESANTI W2 40-43	10	20	9	13	M6 x 50	30 NU
FASCETTE PESANTI W2 44-47	10	22	9	20	M6 x 60	30 NU
FASCETTE PESANTI W2 48-51	10	22	9	20	M6 x 60	30 NU
FASCETTE PESANTI W2 52-55	10	22	9	20	M6 x 60	30 NU
FASCETTE PESANTI W2 56-59	10	22	9	20	M6 x 60	25 NU
FASCETTE PESANTI W2 60-63	10	22	9	20	M6 x 60	25 NU
FASCETTE PESANTI W2 64-67	13	22	18	20	M8 x 70	25 NU
FASCETTE PESANTI W2 68-73	13	24	18	20	M8 x 70	30 NU
FASCETTE PESANTI W2 74-79	13	24	18	20	M8 x 70	30 NU
FASCETTE PESANTI W2 80-85	13	24	18	20	M8 x 75	25 NU
FASCETTE PESANTI W2 86-91	13	24	18	20	M8 x 75	25 NU
FASCETTE PESANTI W2 92-97	13	24	18	20	M8 x 75	25 NU
FASCETTE PESANTI W2 98-103	13	24	18	20	M8 x 80	10 NU
FASCETTE PESANTI W2 104-112	13	24	18	20	M8 x 80	10 NU
FASCETTE PESANTI W2 113-121	13	24	18	20	M8 x 80	10 NU
FASCETTE PESANTI W2 122-130	13	24	18	20	M8 x 80	10 NU
FASCETTE PESANTI W2 131-139 '	17	26	29	35	M10x105	10 NU
FASCETTE PESANTI W2 140-148 '	17	26	29	35	M10x105	10 NU
FASCETTE PESANTI W2 149-161	17	26	29	35	M10x105	10 NU
FASCETTE PESANTI W2 162-174	17	26	29	35	M10x105	5 NU
FASCETTE PESANTI W2 175-187	17	26	29	35	M10x120	10 NU
FASCETTE PESANTI W2 188-200	17	26	29	35	M10x120	10 NU
FASCETTE PESANTI W2 201-213	17	26	29	35	M10x120	10 NU
FASCETTE PESANTI W2 214-226 '	17	26	29	35	M10x120	10 NU
FASCETTE PESANTI W2 227-239	17	26	29	35	M10x120	5 NU
FASCETTE PESANTI W2 240-252	17	26	29	35	M10x120	5 NU
