Tubi per prodotti abrasivi SMARINO/10
    Tubi per prodotti abrasivi SMARINO/10

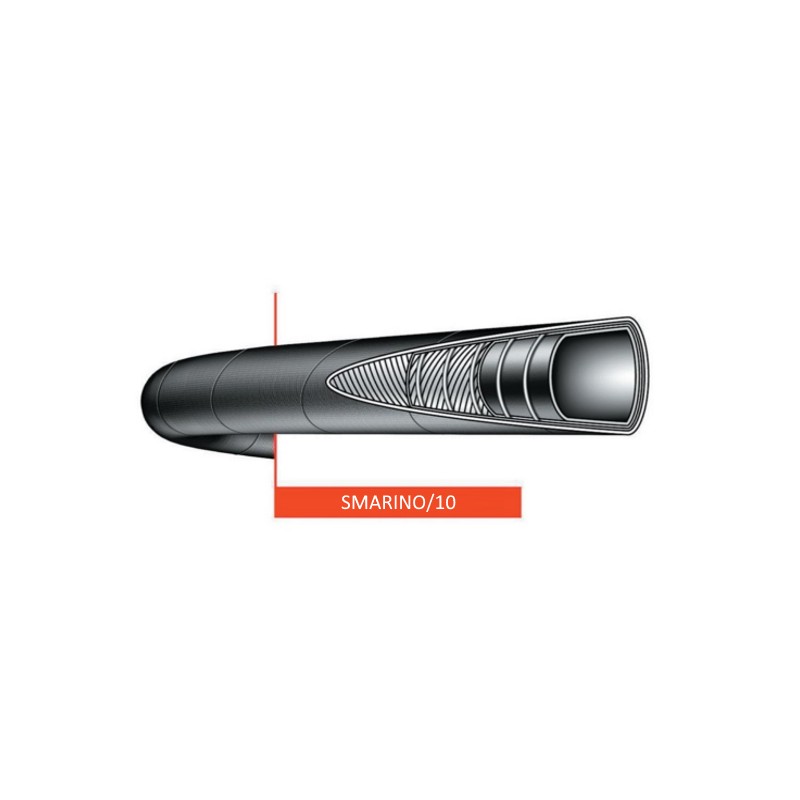

SMARINO/10

Rubber hose suitable for delivery and suction of abrasive material mixed with water. Particularly suitable for hydraulic transport in crushing plants, washing, selection, transport, storage and recycling of aggregates and for the outflow of debris (both loose earth, or rock fragments) coming from excavation works of tunnels and microtunnels, quarries and mines. Sub-layer (≥6mm): NR/SBR/BR, black, conductive, abrasion resistant. Reinforcements: synthetic fabrics, steel spiral incorporated in the tube wall. Cover: smooth, black, conductive, resistant to abrasion, aging and ozone, surface with canvas impression. Safety factor: 3:1. Tolerances: ISO 1307. Temperature range: -40°C +70°C.

Technical Data
Information request

Technical Data

Description Nominal weight kg/m Working press. bar Bursting press. bar Min. bending radius mm Packaging
TUBO G SMARINO/10 102X122 5,2 10 30 510 40 MT
TUBO G SMARINO/10 127X150 7,4 10 30 635 40 MT
TUBO G SMARINO/10 152X178 10,1 10 30 760 40 MT

Application Sectors
