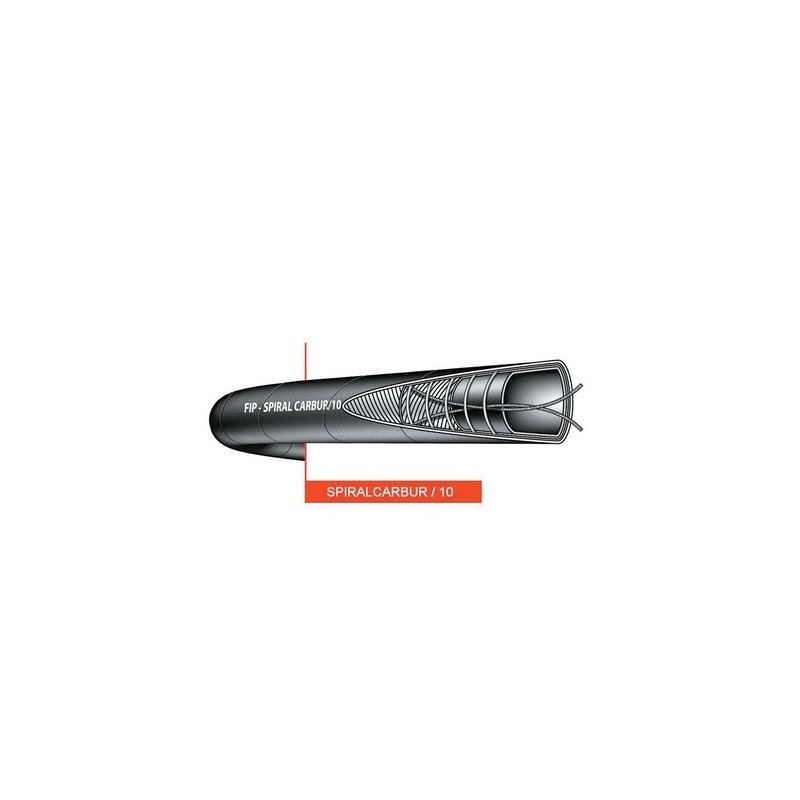

SPIRALCARBUR/10

Hose for petroleum products (DIN 51 603 parts 1 - 5), lead free gasoline (EN228:2017), diesel oil (EN 590:2017), mineral oil etc. with max 50% aromatic content suction and delivery. Black, electrically conductive smooth NBR inner layer. High tensile synthetic plies and copper wire. Embedded steel wire helix. Black, synthetic rubber outer layer resistant to petroleum products (according to SAE J517:2017), weather, ozone and abrasion, smooth with textile finish. Temperature range: -40°C +90°C. Other dimensions, lengths and colors available on request.

Technical Data
Information request

Technical Data

Description Degree of suction Nominal weight kg/m Working press. bar Bursting press. bar Min. bending radius mm Packaging
TUBO G SPIRALCARBUR/10 19X 30 Media 0,55 10 30 80 40 MT
TUBO G SPIRALCARBUR/10 25X 35 Media 0,68 10 30 105 40 MT
TUBO G SPIRALCARBUR/10 30X 41 Media 0,72 10 30 120 40 MT
TUBO G SPIRALCARBUR/10 35X 47 Media 0,87 10 30 145 40 MT
TUBO G SPIRALCARBUR/10 40X 52 Media 0,95 10 30 150 40 MT
TUBO G SPIRALCARBUR/10 50X 63 Media 1,49 10 30 230 40 MT
TUBO G SPIRALCARBUR/10 60X 73 Media 2,29 10 30 290 40 MT
TUBO G SPIRALCARBUR/10 76X 89 Media 2,76 10 30 360 40 MT
TUBO G SPIRALCARBUR/10 80X 96,5 Media 3,2 10 30 400 40 MT
TUBO G SPIRALCARBUR/10 102X116 Media 4,65 10 30 515 40 MT
