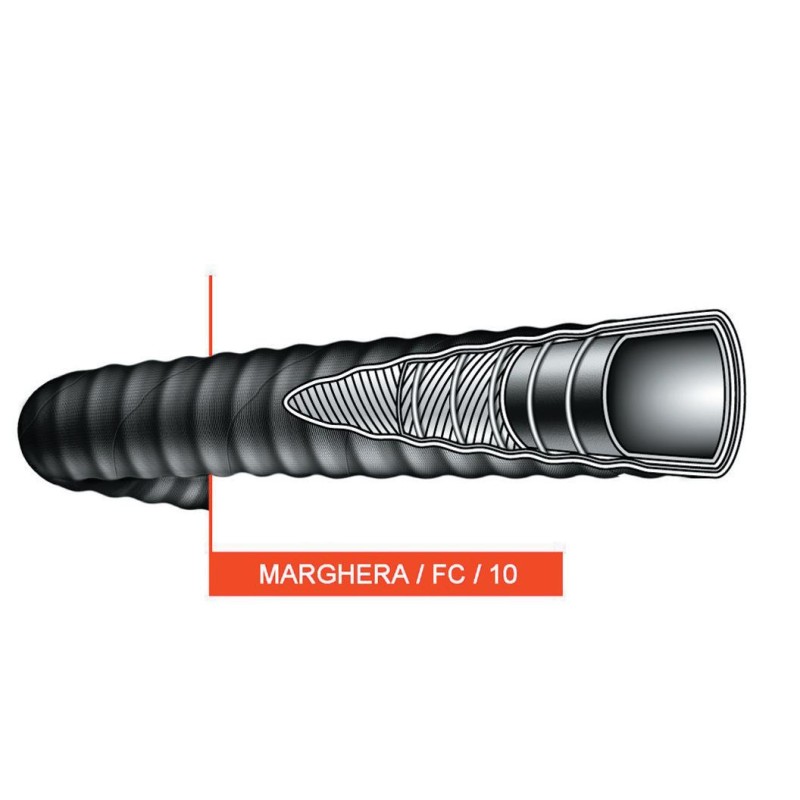

MARGHERA/FC/10

Suction and delivery of acids even at high concentration. Black, smooth synthetic rubber inner layer. High tensile synthetic plies. Embedded steel wire helix. Black synthetic rubber outer layer acids, weather, ozone and abrasion resistant, corrugated with textile finish. Temperature range: -40°C +120°C. Contact our technical department to check the compatibility of the hose with the temperature and the product to be conveyed. Not suitable for oils and organic products. Other dimensions, lengths, colors and pressures available on request.

Technical Data

Description P Es. Bar P Scoppio Bar Nominal weight kg/m R min. curv. mm Grado aspiraz Pressione es. Bar Pressione scoppio Bar Packaging
TUBO G MARGHERA/FC/10 40 10 40 1,7 280 Media/Forte 40 MT
TUBO G MARGHERA/FC/10 50 10 40 2,3 350 Media/Forte 40 MT
TUBO G MARGHERA/FC/10 60 10 40 3 450 Media/Forte 40 MT
TUBO G MARGHERA/FC/10 70 10 40 3,6 550 Media/Forte 40 MT
TUBO G MARGHERA/FC/10 80 10 40 4,2 650 Media/Forte 40 MT
TUBO G MARGHERA/FC/10 120 6,12 950 Media/Forte 10 40 40 MT
TUBO G MARGHERA/FC/10 150 7,95 1200 Media/Forte 10 40 40 MT

Application Sectors
