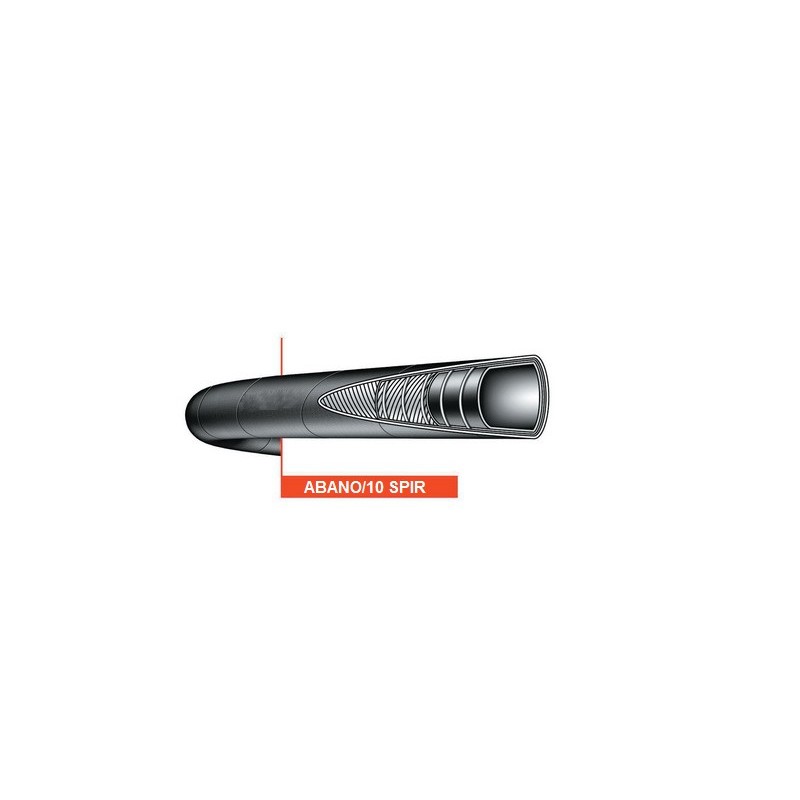

ABANO/10 SPIR

Hose with spiral for hot water and non corrosive fluids suction and delivery. Black smooth EPDM rubber inner layer high temperature resistant. High tensile synthetic plies and helix wire. Black EPDM rubber outer layer heat, weather, ozone and abrasion resistant, smooth with textile finish. Temperature range: -40°C +120°C. Other dimensions, lengths and colors available on request.

Technical Data
Information request

Technical Data

Description Suction bar Nominal weight kg/m Working press. bar Bursting press. bar Min. bending radius mm Packaging
TUBO G ABANO/10 SPIR 18X28 0,9 0,63 10 30 108 40/60 MT
TUBO G ABANO/10 SPIR 25X35 0,9 0,70 10 30 150 40/60 MT
TUBO G ABANO/10 SPIR 30X40 0,9 0,86 10 30 180 40/60 MT
TUBO G ABANO/10 SPIR 35X45 0,9 0,99 10 30 210 40/60 MT
TUBO G ABANO/10 SPIR 45X56 0,9 1,42 10 30 270 40/60 MT
TUBO G ABANO/10 SPIR 60X72 0,9 1,70 10 30 360 40/60 MT
TUBO G ABANO/10 SPIR 70X84,5 0,9 2,56 10 30 420 40/60 MT
TUBO G ABANO/10 SPIR 76X90 0,9 2.76 10 30 450 40/60 MT
