Tubi per acqua calda
    Tubi per acqua calda

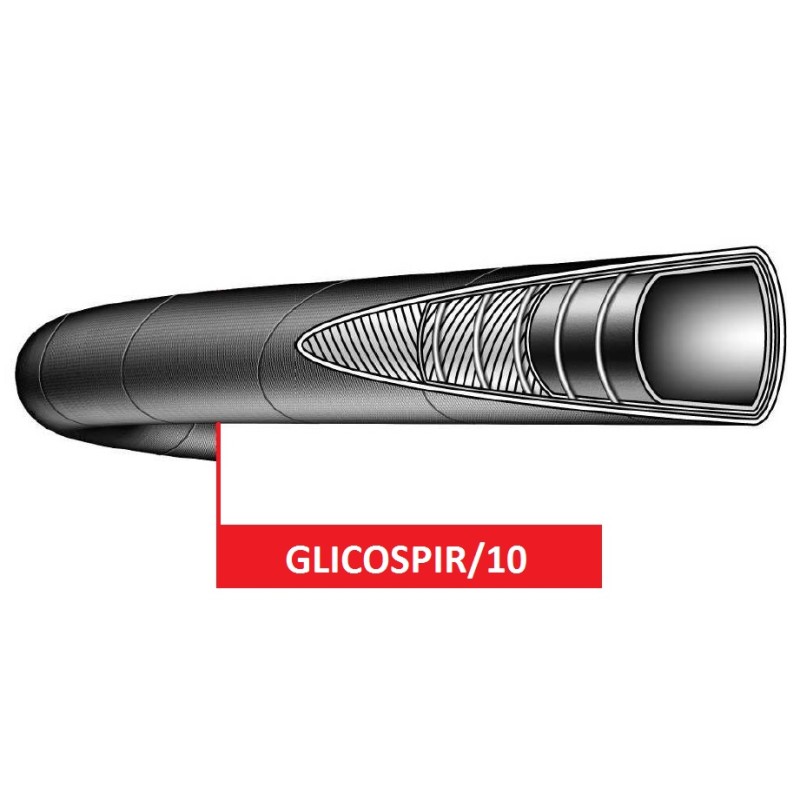

GLICOSPIR/10

Hose for water and glycol suction and delivery. Black, smooth synthetic EPDM rubber inner layer. Embedded steel wire helix. High tensile synthetic plies. Black, synthetic EPDM rubber outer layer weather, ozone, abrasion and sea water resistant, smooth with textile finish. Temperature range: -35°C +100°C. Other dimensions, lengths and colors available on request.

Technical Data
Information request

Technical Data

Description Degree of suction Nominal weight kg/m Working press. bar Bursting press. bar Min. bending radius mm Packaging
TUBO G GLICOSPIR/10 19X31 Medio 0,65 10 30 100 40 MT
TUBO G GLICOSPIR/10 25X37 Medio 0,75 10 30 130 40 MT
TUBO G GLICOSPIR/10 28X40 Medio 0,8 10 30 150 40 MT
TUBO G GLICOSPIR/10 32X44 Medio 0,9 10 30 160 40 MT
TUBO G GLICOSPIR/10 38X50 Medio 1 10 30 190 40 MT
TUBO G GLICOSPIR/10 48X60 Medio 1,4 10 30 240 40 MT
TUBO G GLICOSPIR/10 50X62 Medio 1,56 10 30 250 40 MT
TUBO G GLICOSPIR/10 63X75 Medio 2 10 30 310 40 MT
TUBO G GLICOSPIR/10 80X94 Medio 2,8 10 30 360 40 MT
