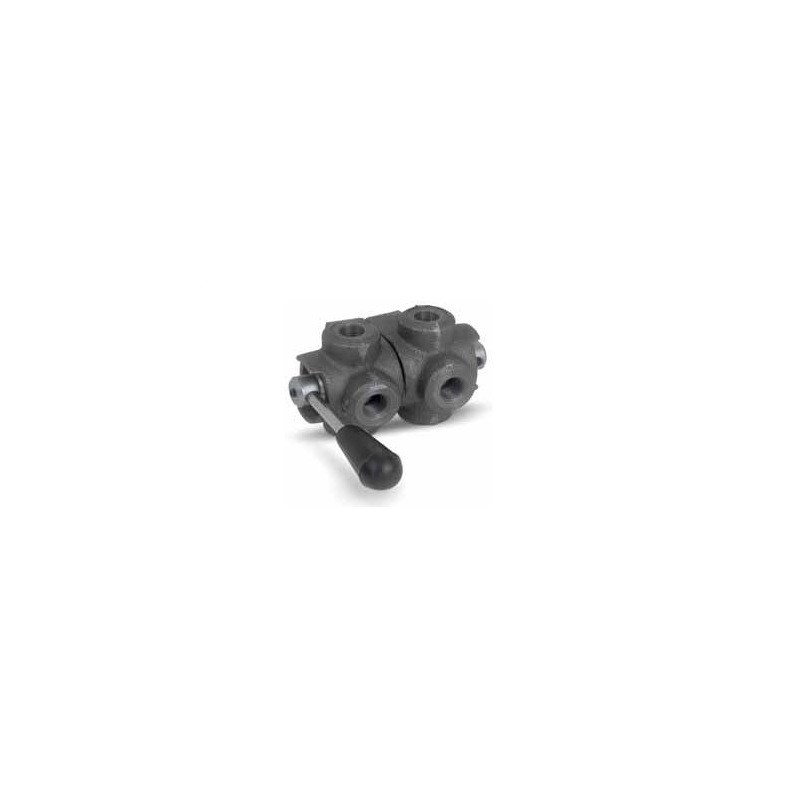

W60DF - Six-ways Diverter Valves

Information request

Description

USE AND OPERATION:

This valve is made up by two 3-ways diverters coupled: each of the 2 parts is used to divert the inlet flow towards two ports. The single lever controls both the parts at the same time. It's ideal to control 2 actuators.

MATERIALS AND FEATURES:



  • Cast iron body
  • Internal parts in hardened and ground steel
  • BUNA N standard seals
  • Tightness: minor leakage



APPLICATIONS:

Connect P and P' to the 2 pressure flows, ports A and B to the first actuator and ports A' andB' to the second actuator. With lever in position 1, P is connected to A and P' to A'; with lever in position 2, P is connected to B and P' to B'. With lever in central position all ports are connected among each other (opened centre).

ON REQUEST:



  • Closed centre (CODE-CC)
  • High pressure - up to 400 bar (CODE-AP)



Oil temperature: 50°C - Oil viscosity: 30 cSt
