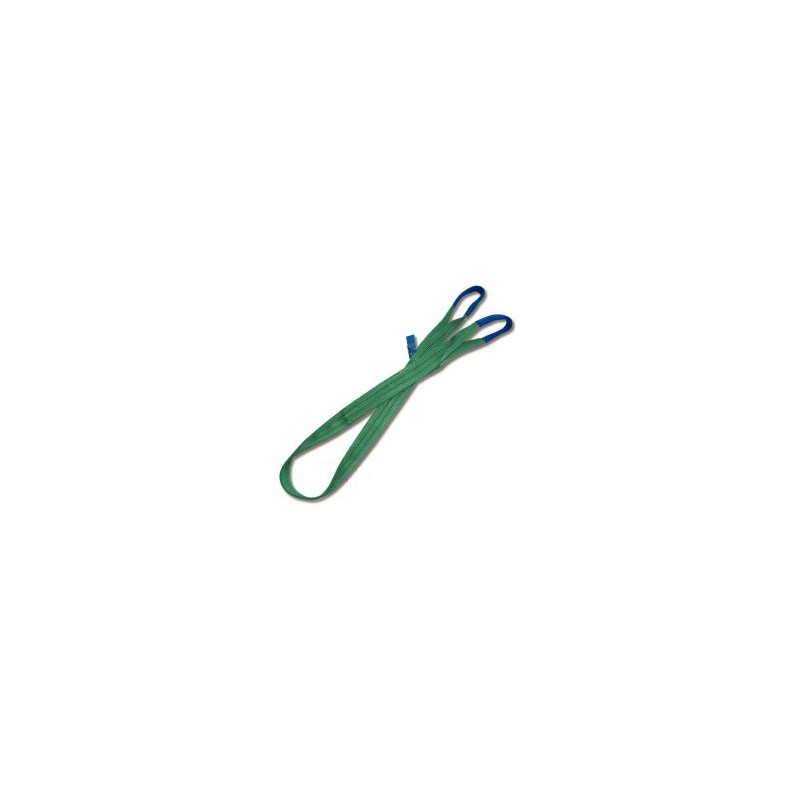

POLYESTER LIFTING SLING CEN/GREEN
Endless lifting sling in accordance with the European Rules CEN Standard EN 1492-I. Safety Factor = 7:1.
Technical Data
| Description | Capacity 45° angle kg | Capacity 90° angle kg | Basket capacity kg | Loop capacity kg | Vertical capacity kg | Packaging |
|---|---|---|---|---|---|---|
| LL-FUNE SOL CEN/VERDE MM. 60 MT. 1 | 3600 | 2800 | 4000 | 1600 | 2000 | 1 NU |
| LL-FUNE SOL CEN/VERDE MM. 60 MT. 2 | 3600 | 2800 | 4000 | 1600 | 2000 | 1 NU |
| LL-FUNE SOL CEN/VERDE MM. 60 MT. 3 | 3600 | 2800 | 4000 | 1600 | 2000 | 1 NU |
| LL-FUNE SOL CEN/VERDE MM. 60 MT. 4 | 3600 | 2800 | 4000 | 1600 | 2000 | 1 NU |
| LL-FUNE SOL CEN/VERDE MM. 60 MT. 5 | 3600 | 2800 | 4000 | 1600 | 2000 | 1 NU |
| LL-FUNE SOL CEN/VERDE MM. 60 MT. 6 | 3600 | 2800 | 4000 | 1600 | 2000 | 1 NU |
| LL-FUNE SOL CEN/VERDE MM. 60 MT. 8 | 3600 | 2800 | 4000 | 1600 | 2000 | 1 NU |
| LL-FUNE SOL CEN/VERDE MM. 60 MT.10 | 3600 | 2800 | 4000 | 1600 | 2000 | 1 NU |
Application Sectors
