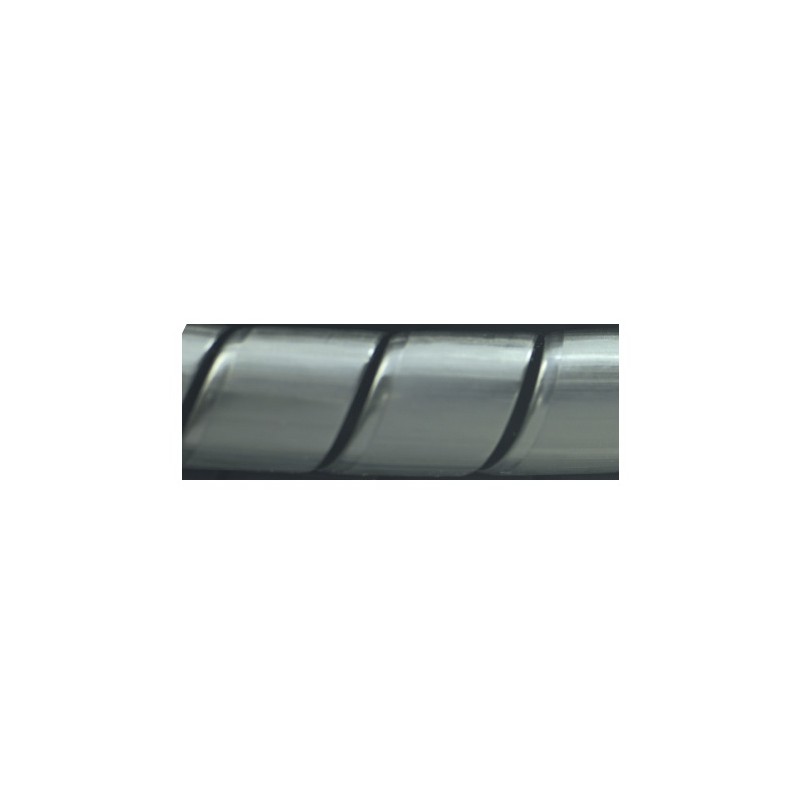

SPIRALIX PE

HD PE spiral for protection from crushing and from abrasion of hydraulic hoses and wrapping groups of hoses. Temperature range: -20°C +60°C. Other sizes - colors yellow and blue - SAE-Spiralix PA version (stronger and more resistant to mechanical stresses and temperature up to +100°C) on request.

Information request

Technical Data

Description O.D. mm I.D. mm Spiral pitch mm Weight g/m Wall thickness mm Packaging
SPIRALIX PE X CABLAGGIO TUBI 13X 16 50MT 16 13 10 50 1,5 50 MT
SPIRALIX PE X CABLAGGIO TUBI 16X 20 50MT 20 16 12 62 2 50 MT
SPIRALIX PE X CABLAGGIO TUBI 20X 25 50MT 25 20 14,5 120 2,5 50 MT
SPIRALIX PE X CABLAGGIO TUBI 24X 29 50MT 29 24 15 160 2,5 50 MT
SPIRALIX PE X CABLAGGIO TUBI 27X 32 50MT 32 27 16 195 2,5 50 MT
SPIRALIX PE X CABLAGGIO TUBI 30X 35 50MT 35 30 18 230 2,5 50 MT
SPIRALIX PE X CABLAGGIO TUBI 35X 40 50MT 40 35 20,5 280 2,5 50 MT
SPIRALIX PE X CABLAGGIO TUBI 44X 50 50MT 50 44 23 400 3 50 MT
SPIRALIX PE X CABLAGGIO TUBI 65X 75 20MT 75 65 30 770 5 20 MT
SPIRALIX PE X CABLAGGIO TUBI 80X 90 20MT 90 80 34 1070 5 20 MT

Application Sectors
