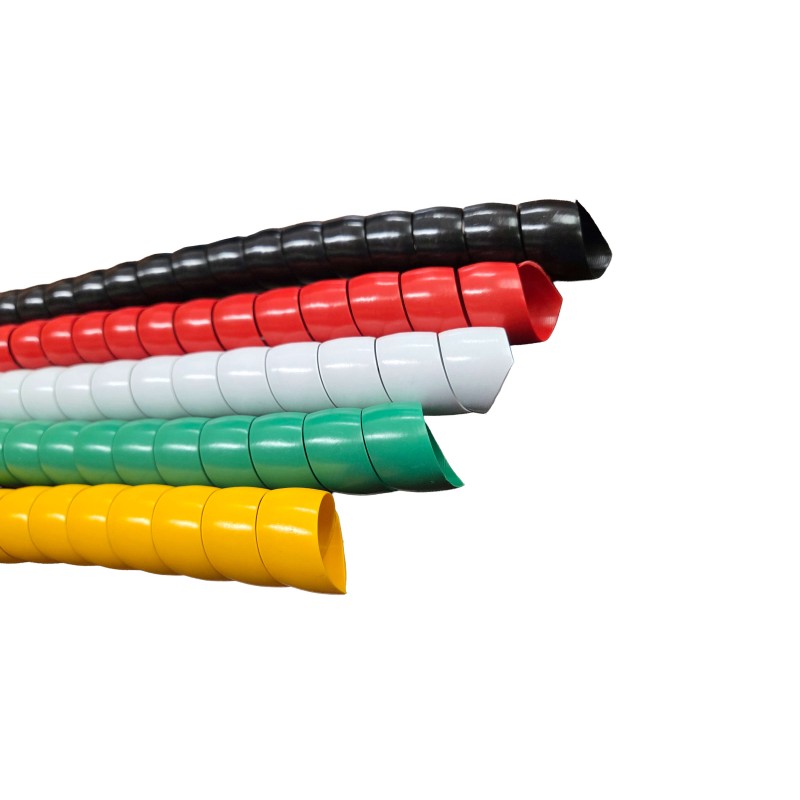

SPIRALIX PVC

HD PE black spiral for protection from crushing and from abrasion of hydraulic hoses and wrapping groups of hoses. Temperature range: -10°C +70°C. Other sizes - colors yellow, green, red, blue - SAE-Spiralix PA version (stronger and more resistant to mechanical stresses and temperature up to +100°C) on request.

Technical Data
Information request

Technical Data

Description O.D. mm I.D. mm Spiral pitch mm Weight g/m Wall thickness mm Packaging
SPIRALIX PVC X CABLAGGIO TUBI 13X 16 50M 16 13 10 50 1,5 50 MT
SPIRALIX PVC X CABLAGGIO TUBI 16X 20 50M 20 16 12 62 2 50 MT
SPIRALIX PVC X CABLAGGIO TUBI 20X 25 50M 25 20 14,5 120 2,5 50 MT
SPIRALIX PVC X CABLAGGIO TUBI 24X 29 50M 29 24 15 160 2,5 50 MT
SPIRALIX PVC X CABLAGGIO TUBI 27X 32 50M 32 27 16 195 2,5 50 MT
SPIRALIX PVC X CABLAGGIO TUBI 30X 35 50M 35 30 18 230 2,5 50 MT
SPIRALIX PVC X CABLAGGIO TUBI 35X 40 50M 40 35 20,5 280 2,5 50 MT
SPIRALIX PVC X CABLAGGIO TUBI 44X 50 25M 50 44 23 400 3 50 MT
SPIRALIX PVC X CABLAGGIO TUBI 67X 75 20M 75 67 30 770 5 20 MT
SPIRALIX PVC X CABLAGGIO TUBI 80X 90 10M 90 80 34 1070 5 20 MT

Application Sectors
