Tubi spiralati per ventilazione ed aspirazione TERMOVEN/150
    Tubi spiralati per ventilazione ed aspirazione TERMOVEN/150

TERMOVEN/150

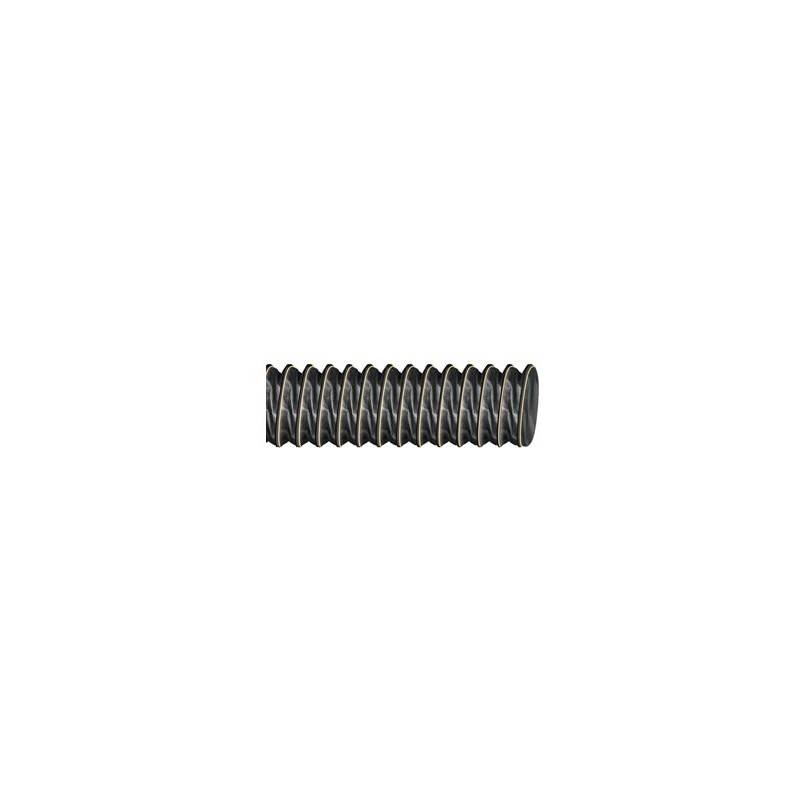

Black color, flexible hose made of glass fiber impregnated with neoprene rubber, VISIBLE galvanized steel spiral and an external glass fiber string. For cold and hot air and for exhaust gases suction and delivery. Can be axially compressed up to 30% of the length. Temperature range: -50°C +150°C (peaks). Other internal diameters of production: 22 - 25 - 26 - 28 - 30 - 32 - 35 - 38 - 39 - 41 - 42 - 44 - 45 - 52 - 55 - 57 - 58 - 60 - 62 - 64 - 65 - 67 - 70 - 72 - 80 - 83 - 92 - 95 - 108 - 110 - 120 - 130 - 140 - 160 - 165 - 170 - 180 - 229 - 254 - 305. Flame retardant regulation: UL 94 V-1. Other sizes and versions available on request: with end cuffs, insulated or in UL 94 V-0 class.

Technical Data
Information request

Technical Data

Description Suction mm/H₂O Weight g/m Working press. bar Bending radius mm Packaging
TUBO P TERMOVEN/150°C./NERO 51 4200 250 1,2 16 4 MT
TUBO P TERMOVEN/150°C./NERO 63 3900 300 1,1 20 4 MT
TUBO P TERMOVEN/150°C./NERO 76 3300 410 1,1 25 4 MT
TUBO P TERMOVEN/150°C./NERO 89 2900 490 1 29 4 MT
TUBO P TERMOVEN/150°C./NERO 102 2500 650 0,9 35 4 MT
TUBO P TERMOVEN/150°C./NERO 114 2100 720 0,9 40 4 MT
TUBO P TERMOVEN/150°C./NERO 127 1600 800 0,8 46 4 MT
TUBO P TERMOVEN/150°C./NERO 152 1300 980 0,7 50 4 MT
TUBO P TERMOVEN/150°C./NERO 178 1000 1190 0,6 60 4 MT
TUBO P TERMOVEN/150°C./NERO 203 650 1330 0,5 68 4 MT

Application Sectors
