CARBUR

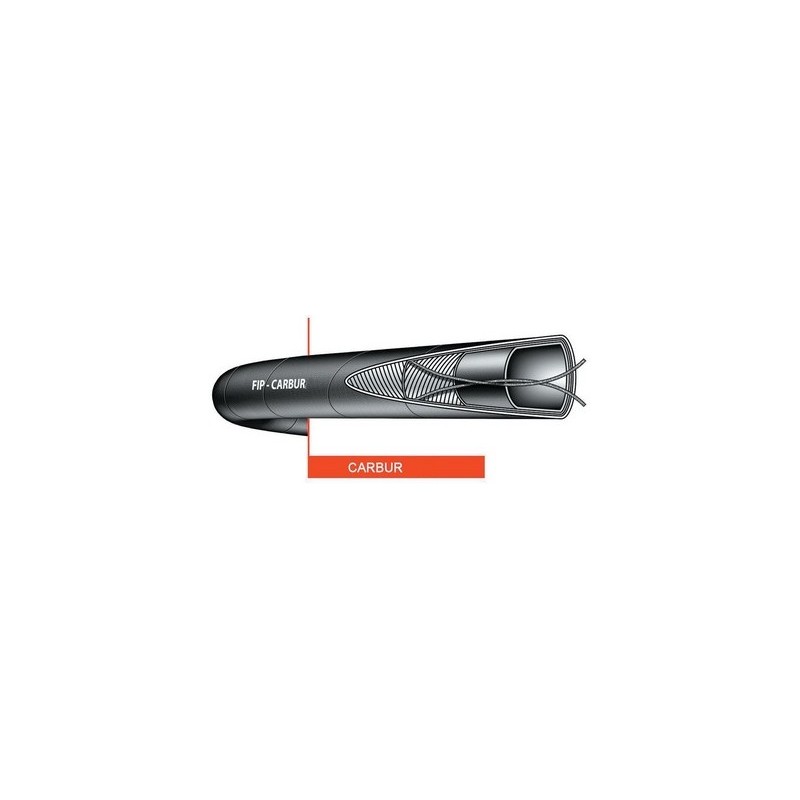

Hose for petroleum products (DIN 51 603 parts 1 - 5), lead free gasoline (EN228:2017), diesel oil (EN 590:2017), mineral oil etc. with max 50% aromatic content discharge. Black, electrically conductive smooth NBR inner layer. High tensile synthetic plies and copper wire. Black, synthetic rubber outer layer resistant to petroleum products (according to SAE J517:2017), weather, ozone and abrasion, smooth with textile finish. Temperature range: -40°C +90°C. Other dimensions, lengths and colors available on request.

Technical Data

Information request

Technical Data

Description	Nominal weight kg/m	Working press. bar	Bursting press. bar	Packaging
TUBO G CARBUR/10 D. 13X20	0,24	10	30
TUBO G CARBUR/10 D. 19X27	0,39	10	30	40/60 MT
TUBO G CARBUR/10 D. 25X35	0,65	10	30	40/60 MT
TUBO G CARBUR/10 D. 30X40	0,72	10	30	40/60 MT
TUBO G CARBUR/10 D. 35X45	0,86	10	30	40/60 MT
TUBO G CARBUR/10 D. 40X50	0,97	10	30	40/60 MT
TUBO G CARBUR/10 D. 45X55	1,1	10	30	40/60 MT
TUBO G CARBUR/10 D. 50X60	1,16	10	30	40/60 MT
TUBO G CARBUR/10 D. 60X72	1,72	10	30	40/60 MT
TUBO G CARBUR/15 D. 75X92 §	1,32	20	60	40/60 MT
TUBO G CARBUR/20 D. 19X32	0,71	20	60	40/60 MT
TUBO G CARBUR/20 D. 25X38	0,89	20	60	40/60 MT
TUBO G CARBUR/20 D. 32X46	1,18	20	60	40/60 MT
TUBO G CARBUR/20 D. 51X64	1,81	20	60	40/60 MT
TUBO G CARBUR/20 D. 60X74	1,73	20	60	40/60 MT
TUBO G CARBUR/20 D.100X120 §	0,54	10	30	40/60 MT
