STEEL ROPE TIE-ROD A/A
Lifting, tie rods and anchoringSteel rope tie-rod with textile (T) or metallic (M)...
IMPORTANT: Data on the table here below may change without notice. Breaking loads are applicable on new ropes. We advise not to load more than the 20% of the reported breaking loads. In presence of knots the breaking load decreases by more of 50%.
| Description | Breaking load kg | Length m | Weight g/m | Packaging |
|---|---|---|---|---|

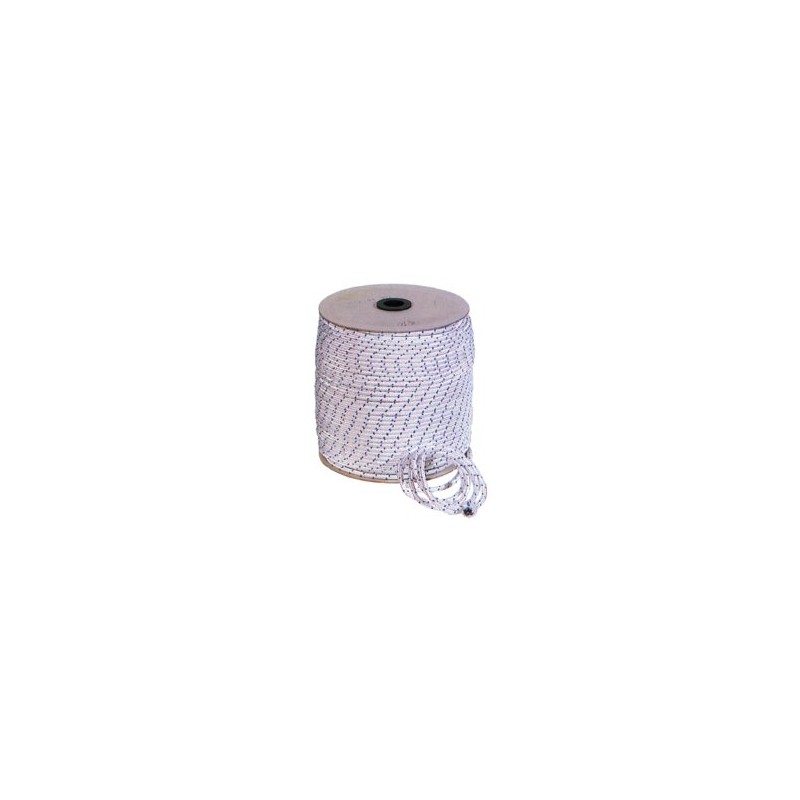

| FUNE POLIESTERE 4 | 280 | 350 | 15 | 5,25 KG |
| FUNE POLIESTERE 5 | 400 | 250 | 20 | 5 KG |
| FUNE POLIESTERE 6 | 520 | 200 | 29 | 5,8 KG |
| FUNE POLIESTERE 8 | 860 | 200 | 55 | 11 KG |
| FUNE POLIESTERE 10 | 1210 | 200 | 85 | 17 KG |
| FUNE POLIESTERE 12 | 1910 | 200 | 113 | 22,6 KG |
| FUNE POLIESTERE 14 | 2220 | 150 | 146 | 21,9 KG |
| FUNE POLIESTERE 16 | 2830 | 120 | 200 | 24 KG |
| FUNE POLIESTERE 18 | 3120 | 100 | 250 | 25 KG |
| FUNE POLIESTERE 20 | 3950 | 100 | 290 | 29 KG |
