METALLIC ROPE - 72 THREADS
Lifting, tie rods and anchoringResistance 880 N/mm2 - Regulations UNI 2408.
Endless lifting sling in accordance with the European Rules CEN Standard EN 1492-I. Safety Factor = 7:1.
| Description | Capacity 45° angle kg | Capacity 90° angle kg | Basket capacity kg | Loop capacity kg | Vertical capacity kg | Packaging |
|---|---|---|---|---|---|---|
| LL-FUNE SOL CEN/GRIGIO MM.120 MT. 2 | 7200 | 5600 | 8000 | 3200 | 4000 | 1 NU |
| LL-FUNE SOL CEN/GRIGIO MM.120 MT. 3 | 7200 | 5600 | 8000 | 3200 | 4000 | 1 NU |
| LL-FUNE SOL CEN/GRIGIO MM.120 MT. 4 | 7200 | 5600 | 8000 | 3200 | 4000 | 1 NU |
| LL-FUNE SOL CEN/GRIGIO MM.120 MT. 5 | 7200 | 5600 | 8000 | 3200 | 4000 | 1 NU |
| LL-FUNE SOL CEN/GRIGIO MM.120 MT. 6 | 7200 | 5600 | 8000 | 3200 | 4000 | 1 NU |
Resistance 880 N/mm2 - Regulations UNI 2408.
Closed loop. European Regulations CEN Standard EN...
Pendants with 1, 2 or 4 arms, in steel rope with a...
Eyelet safety hook BK type. Safety coefficient 4:1.
Closed loop. European Regulations CEN Standard EN...
Steel rope tie-rod with textile (T) or metallic (M)...
Endless lifting sling in accordance with the European...

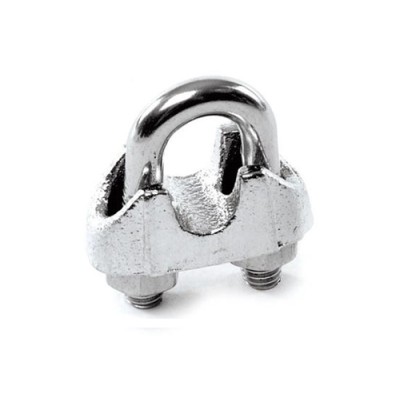

Malleable iron or FE42A steel sideburn - U steel FE37A...
"S" hook for movement. mm 25 - kg 500 - in case.
IMPORTANT: Data on the table here below may change...
